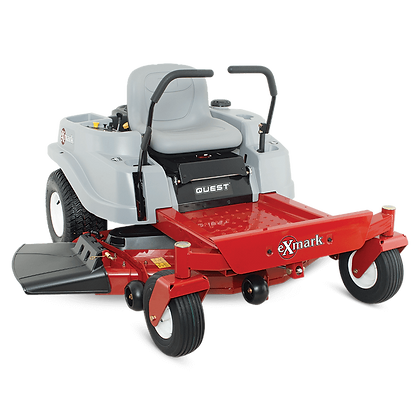

EXMARK QUEST E-SERIES
Superior Handling The Quest is designed with its heaviest components mounted low in the frame, toward the center of the machine. This low center of gravity improves handling and traction.
New Deck Size In addition to the 42-inch deck, the Quest E-Series is now available wih a 54-inch deck.
Standard Rear Engine Guard Provides added production to the engine components from damage by brush debris.
Simple Adjustment With a single-point height adjust, it's easy to adjust the Quest's cutting deck.
Automatic Braking System For added safety, whenever the Quest's controls are positioned outward, it's parking brake is applied automatically.
Exmark Engines Built precisely to Exmark's specifications allow them to control engine quality from start to finish. Super-quick and easy oil drain system, and an advanced air intake system specially disigned to decrease dirt ingestion and increase performance.
Equipment
Blade Spindles
No maintenance, sealed and non-greasable spindles; 5.50"-diameter cutter housing with 0.67"-diameter spindle shaft.
Drive Tires
18 x 7.50-8, 2-ply Turf Tech TL
Cup Holder
Standard
Tractor Frame
Unibody, Riveted 10 ga. Steel
Steering Control
Hydraulically dampened twin levers, adjustable both fore and aft. Levers are also adjustable to 2 height positions.
Front Caster Tires
11 x 4-5 ribbed tread, pneumatic
Parking Brake
Lever-actuated pawl brake.
Seat
Extra High Back foam padded. Hinged mounting, spring suspension. Adjustment: Fore and aft 3 in. by loosening 2 bolts and sliding seat.
Electrical
12-volt battery with 15-amp alternator.
Power Components
Engine Brand
Exmark
Engine Model
452
Engine Displacement
452
Engine Series
Single
Engine Type
Carbureted
Engine Speed
3,300 rpm
Air Filter
Standard Engine Manufacturer's air filter
Fuel Filter
Gas Carbureted
Fuel Capacity
High-capacity, 2.9-gallon (11.0-L), single fuel tank with single fill location.
Fuel Indicator
Translucent Visual
Drive
Hydro-Drive
Drive Description
Two Hydro-Gear ZT2100 hydro static transmissions with no hoses, integrated cooling fans, integrated reservoir.
Speed
Infinitely variable speed selection from 0-7 mph (11.3 km/h) forward 0-3.4 mph (5.5 km/h) reverse.
Carb Compliant
Yes
Deck Lift
Standard; lever lift.
Safety Package
Operator Presence Control (OPC) and drive system interlock.
ROPS
None
PTO Engagment
MagStop electromagnetic 80-ft-lbs clutch
Drive Wheel Release
Allows unit movement without engine running.
Casters
.25" thick caster yoke arms
Decks
Width / Cutting Deck
42"
Deck Style
Floating Deck
Deck Style Description
Exmark Series-1 stamped steel deck. Side discharge standard with the option to bag or mulch.
Deck Construction
10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper.
Blade Tip Speed
Approximately 18,500 fpm.
Cutting Heights
1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments, adjustable from operator seat with standard lever lift.
Blades
2 Blades at 21.60" length.
Dimensions
Width
53.8 in. (136.7 cm)
Length
71.8 in. (182.4 cm)
Height
40.7 in (103.4 cm)
Curb Weight
555
Equipment
Blade Spindles
No maintenance, sealed and non-greasable spindles; 5.50"-diameter cutter housing with 0.67"-diameter spindle shaft.
Drive Tires
18 x 9.5-8, 2-ply Turf Tech TL
Cup Holder
Standard
Tractor Frame
Unibody, Riveted 10 ga. Steel
Steering Control
Hydraulically dampened twin levers, adjustable both fore and aft. Levers are also adjustable to 2 height positions.
Front Caster Tires
13 x 5-6 ribbed tread, pneumatic
Parking Brake
Lever-actuated pawl brake.
Seat
Extra High Back foam padded. Hinged mounting, spring suspension. Adjustment: Fore and aft 3 in. by loosening 2 bolts and sliding seat.
Electrical
12-volt battery with 15-amp alternator.
Power Components
Engine Brand
Exmark
Engine Model
708
Engine Displacement
708
Engine Series
V-Twin
Engine Type
Carbureted
Engine Speed
3,300 rpm
Air Filter
Standard Engine Manufacturer's air filter
Fuel Filter
Gas Carbureted
Fuel Capacity
High-capacity, 2.9-gallon (11.0-L), single fuel tank with single fill location.
Fuel Indicator
Translucent Visual
Drive
Hydro-Drive
Drive Description
Two Hydro-Gear ZT2800 hydro static transmissions with charge pumps, no hoses, integrated cooling fans, remote reservoir, spin-on filter and heavy-duty components.
Speed
Infinitely variable speed selection from 0-7 mph (11.3 km/h) forward 0-3.4 mph (5.5 km/h) reverse.
Carb Compliant
No
Deck Lift
Standard; lever lift.
Safety Package
Operator Presence Control (OPC) and drive system interlock.
ROPS
None
PTO Engagment
MagStop electromagnetic 105-ft-lbs clutch
Drive Wheel Release
Allows unit movement without engine running.
Casters
.25" thick caster yoke arms
Decks
Width / Cutting Deck
50"
Deck Style
Floating Deck
Deck Style Description
Exmark Series-2 fabricated and welded steel deck. Side discharge standard with the option to bag or mulch.
Deck Construction
10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper.
Blade Tip Speed
Approximately 18,500 fpm.
Cutting Heights
1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments, adjustable from operator seat with standard lever lift.
Blades
3 Blades at 17.50" length.
Dimensions
Width
61.7 in. (156.7 cm)
Length
72.9 in. (185.2 cm)
Height
42.9 in (109.0 cm)
Curb Weight
681
Equipment
Blade Spindles
No maintenance, sealed and non-greasable spindles; 5.50"-diameter cutter housing with 0.67"-diameter spindle shaft.
Drive Tires
18 x 7.50-8, 2-ply Turf Tech TL
Cup Holder
Standard
Tractor Frame
Unibody, Riveted 10 ga. Steel
Steering Control
Hydraulically dampened twin levers, adjustable both fore and aft. Levers are also adjustable to 2 height positions.
Front Caster Tires
11 x 4-5 ribbed tread, pneumatic
Parking Brake
Lever-actuated pawl brake.
Seat
Extra High Back foam padded. Hinged mounting, spring suspension. Adjustment: Fore and aft 3 in. by loosening 2 bolts and sliding seat.
Electrical
12-volt battery with 15-amp alternator.
Power Components
Engine Brand
Exmark
Engine Model
708
Engine Displacement
708
Engine Series
V-Twin
Engine Type
Carbureted
Engine Speed
3,300 rpm
Air Filter
Standard Engine Manufacturer's air filter
Fuel Filter
Gas Carbureted
Fuel Capacity
High-capacity, 2.9-gallon (11.0-L), single fuel tank with single fill location.
Fuel Indicator
Translucent Visual
Drive
Hydro-Drive
Drive Description
Two Hydro-Gear ZT2100 hydro static transmissions with no hoses, integrated cooling fans, integrated reservoir.
Speed
Infinitely variable speed selection from 0-7 mph (11.3 km/h) forward 0-3.4 mph (5.5 km/h) reverse.
Carb Compliant
No
Deck Lift
Standard; lever lift.
Safety Package
Operator Presence Control (OPC) and drive system interlock.
ROPS
None
PTO Engagment
MagStop electromagnetic 80-ft-lbs clutch
Drive Wheel Release
Allows unit movement without engine running.
Casters
.25" thick caster yoke arms
Decks
Width / Cutting Deck
42"
Deck Style
Floating Deck
Deck Style Description
Exmark Series-2 fabricated and welded steel deck. Side discharge standard with the option to bag or mulch.
Deck Construction
10-gauge top that is formed and welded, 12-gauge side skirt and 7-gauge welded bumper.
Blade Tip Speed
Approximately 18,500 fpm.
Cutting Heights
1.5" (3.8 cm) to 4.5" (11.4 cm) in 0.5" (1.3 cm) increments, adjustable from operator seat with standard foot operated assist.
Blades
2 Blades at 21.60" length.
Dimensions
Width
54.1 in. (137.4 cm)
Length
71.8 in. (182.4 cm)
Height
40.7 in (103.4 cm)
Curb Weight
715
